Circular Spalakh
Charge Initiation Device
CIRCULAR SPALAKH is a multifunctional initiation device primarily designed for interceptor and deep-strike UAVs, providing controlled warhead detonation through contact or non-contact munition initiation.
The built-in accelerometer rapidly detects collisions with hard and soft targets. The device supports configurable initiation modes and algorithms, commands received via PWM and UART, and operation using a self-destruct timer.
Device status and timer values can be displayed on an OSD when integrated with flight controllers running Betaflight or ArduPilot.
Purpose
Quadcopter and fixed-wing UAVs
Long-range UAVs
Compatible with munitions
Initiation Types
1
Accelerometer-based initiation (hard / soft / mixed target)2
Initiation via dry contact (“whiskers”)3
Initiation via PWM signal4
Initiation via UART command5
Self-destruct timerTechnical Specifications
| Parameter | Value |
|---|---|
| Power source | No built-in battery; external power only (from the flight controller) |
| Detonator voltage | 17–19 V |
| Response time - via accelerometer (hard target) | up to 4 ms |
| Response time - via accelerometer (soft target) | up to 20 ms |
| Response time - via dry contact signal | <1 ms |
| Response time - after receiving PWM command | <1 ms |
| Response time - after receiving command via UART | <1 ms |
| Interfaces | USB Type-C, UART |
| Dimensions | 58.6×50.9×15.6 mm |
| Weight | 30 g |
| External modules | Optional external indicators |
Durability and Operational Indicators
| Parameter | Value |
|---|---|
| Service life | 2 years |
| Maintenance | no periodic maintenance required |
Connection Interfaces
PWM and UART
for receiving commands from UAV
External sensors, LiDAR*
The possibility of connection must be confirmed with the manufacturer in advance
Betaflight, Ardupilot integration
Ability to display status and timer values on pilot's OSD
LED status indication
USB-C
for configuration

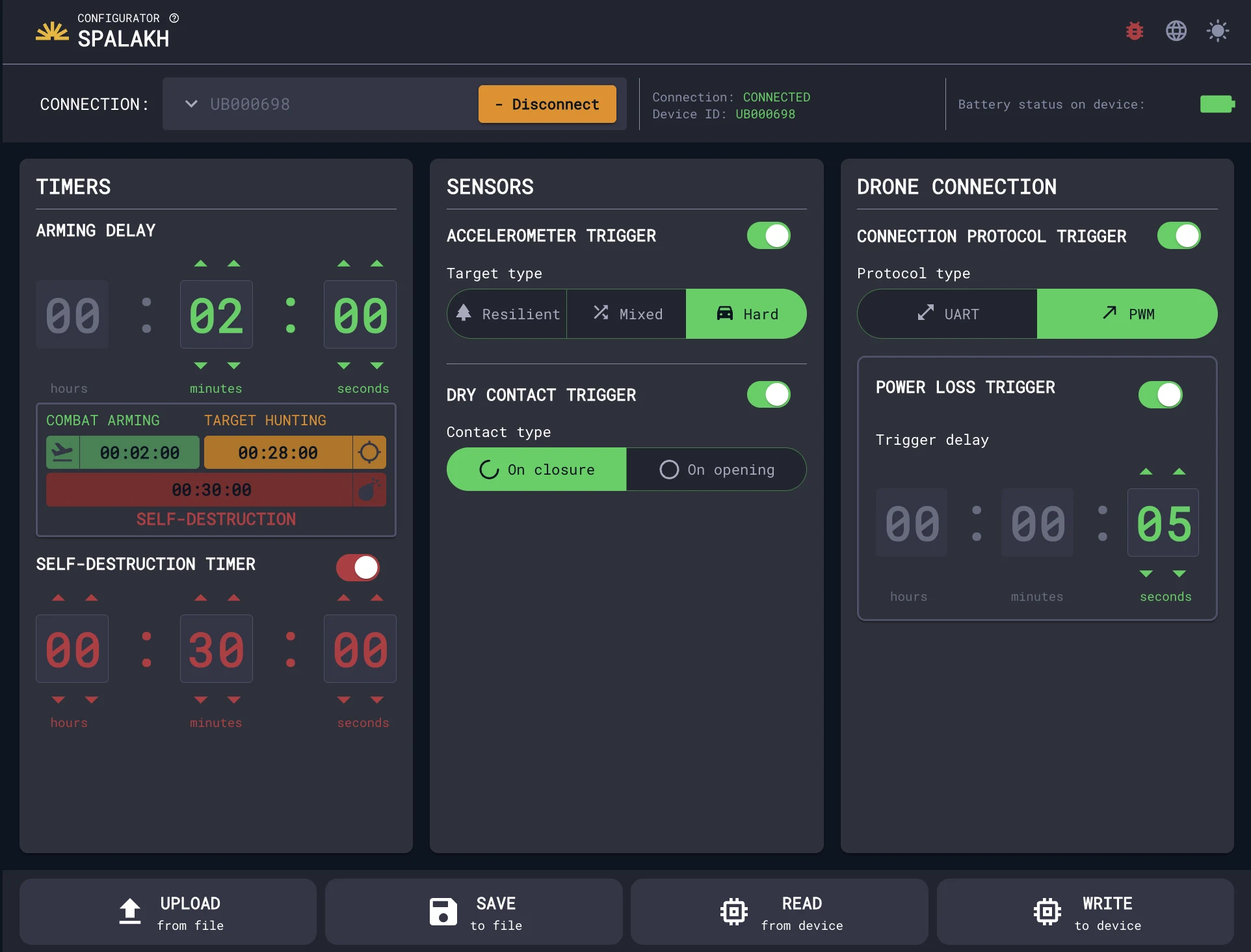

Convenient Configurator
Intuitive interface for configuring all device parameters
Available for Mobile/Tablet/Laptop/Website (Windows, macOS, Linux)
Activation and Safety
Automatic Power-On
Powered by the flight controller with automatic startup upon power application.
Mechanical safety pin
Breaks the electrical circuit to the initiator
Armed delay timer
Time from powering on the initiation board to arming the system (45 seconds–45 minutes)
Self-diagnostics
Real-time initiation circuit self-test and error status can also be checked in the configurator
